Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V

Name: Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V
Brand: GAOQI
Price: 10 USD

Wholesale Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V from china suppliers

Applicable Industries : Manufacturing Plant

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Application : Textiles

Automatic Grade : Automatic

Production Capacity : 1-45m/min

Place of Origin : Jiangsu, China

Brand Name : GAOQI

Voltage : 380V,60HZ customized

Power : 60kw

Dimension(L*W*H) : 8000*2450*2650mm

Weight : 4500

Features : Carpet and Sponge

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Color : CUSTOMIZED

After Warranty Service : Video technical support

Certification : ISO9001

Packaging Details : Carpet and Sponge laminating machine
standard export container: inner packing type: film
external packing type: wooden case

Port : shanghai

Supply Ability : 30 Set/Sets per Month

Price : $10,800.00 - $25,486.00/sets

MOQ : 1 PC

Contact Now

Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V

Product
Another Name:vertical net belt lamination machine ; Chenille carpet lamination machine; white glue lamination machine; water-based
glue lamination machine;shoe materials lamination machine;latex lamination machine;sponge and leather lamination machine, etc

Features:
1.White latex is used as adhesive and high temp. net belt can make sure laminates into one layer.
2.The automatic rectifying of net belt , ensure the laminated products are neat and flat.
3.Utilizes synchronous control with frequency conversion of operating system.
4.According to the characteristics of different materials, part of the device can be changed to achieve the final required.
5.Special specifications can be customized.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	5-45m/min
Gross Power	About 50KW
Heating method	Electric/heat conduction oil/steam
Effective Width	1600mm / can be customized
Diameter of heating roller	1500mm / 1800mm / 2000mm
Spec. Of heating tube	30pcs*1.5kw=45kw
Roller width	1800-3500mm ( according to materials)
Coating Method	Roll Coating
Demension(LWH)	7300mm2450mm2650mm
Gross Weight	About 4500kg

Application:
Mainly used for gluing coating and laminating of coils and coils or coils and sheets .The raw materials are cashmere, polar fleece, plush, suede, sponge, fabrics, non-woven fabrics, EVA, leather ,silk wadding and so on. The finished products are widely used for garment, shoes and hats, luggage, gloves, leather, automotive interiors, toys, carpet , home textiles , etc.

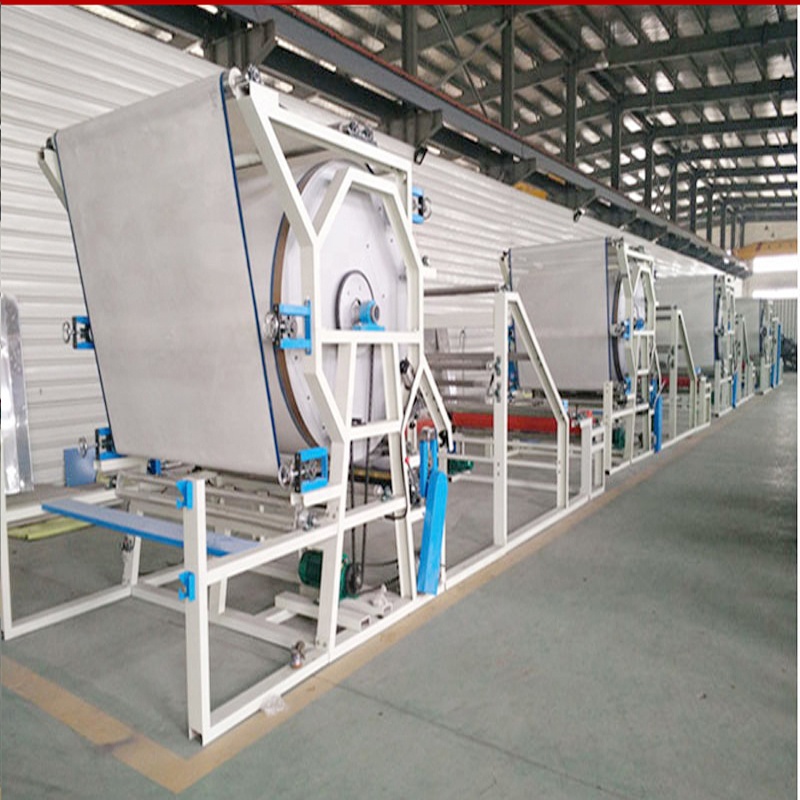

Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V Images
